The Extensible Provisioning Protocol

Gavin Brown, CentralNic Ltd

About CentralNic

founded 1995
second-level registry (.UK.COM, .US.COM)
~10⁵ domains
> 2x10³ resellers/registrars
bidders on .ORG, .EU
.LA ccTLD launching soon

History

Prehistory: NSI
Then: ICANN
Shared Registry System for gTLDs
standard registry-registrar interface

What is EPP?

domain provisioning
provisioning means:

registering
renewing
modifying
deleting
transferring

standard protocol to be adopted by all gTLDs

What is EPP?

XML over TCP*
stateful, transactional, idempotent
basic protcol is agnostic of object type
uses namespaces to define objects and schemas to describe them
like XML-RPC or SOAP but harder

* secured by SSL/TLS

What is EPP?

           |
           V
   +-----------------+                  +-----------------+
   |   Waiting for   |     Connected    |     Prepare     |
   |      Client     |----------------->|     Greeting    |
   +-----------------+    or <hello>    +-----------------+
      ^                                           |
      | Close Connection                     Send |
      |     or Idle                      Greeting |
   +-----------------+                            V
   |       End       |     Timeout      +-----------------+
   |     Session     |<-----------------|   Waiting for   |
   +-----------------+                  |      Client     |
      ^    ^    ^        Send +-------->|  Authentication |
      |    |    |    Response |         +-----------------+
      |    |    |     +--------------+            |
      |    |    |     | Prepare Fail |            | <login>
      |    |    +-----|   Response   |            | Received
      |    |    Send  +--------------+            V
      |    |    2501          ^         +-----------------+
      |    |   Response       |         |   Processing    |
      |    |                  +---------|     <login>     |
      |    |                  Auth Fail +-----------------+
      |    |                                       |
      |    |                                       | Auth OK
      |    |                                       V
      |    |              Timeout       +-----------------+
      |    +----------------------------|   Waiting for   |
      |                                 |     Command     |
      | Send x5xx                       +-----------------+
      | Response  +-----------------+  Send    ^  |
      +-----------|     Prepare     | Response |  | Command
                  |     Response    |----------+  | Received
                  +-----------------+             V
                             ^          +-----------------+
                     Command |          |   Processing    |
                   Processed +----------|     Command     |
                                        +-----------------+

What is EPP?

RFC 3730 - basic protocol
RFC 3731 - domain
RFC 3732 - hosts
RFC 3733 - contacts
RFC 3734 - TCP transport
RFC 3735 - extending
RFC 3915 - grace periods
RFC 4310 - DNSSEC (DS records)

Why should I care?

Already in use for .ORG, .INFO, .EU
.COM and .NET migration to EPP October 28
Changes transfer procedure
Nominet implementation
ENUM

The guts of EPP

EPP frame = 4 octets + XML

$frame = pack('N', length($xml) + 4).$xml

EPP Command Frame

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<epp xmlns="urn:ietf:params:xml:ns:epp-1.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="urn:ietf:params:xml:ns:epp-1.0 epp-1.0.xsd">
  <command>
    <cmdName>
      <objectType:cmdName
        xmlns:contact="objectTypeNameSpace"
        xsi:schemaLocation="objectTypeSchema">
        <objectType:parameter name="foo">bar</objectType:parameter>
      </objectType:check>
    </cmdName>
    <clTRID>ABC-12345</clTRID>
  </command>
</epp>

EPP Response Frame

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<epp xmlns="urn:ietf:params:xml:ns:epp-1.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="urn:ietf:params:xml:ns:epp-1.0 epp-1.0.xsd">
  <response>
     <result code="200">Command completed successfully.</result>
      <resData>
        <objectType:cmdNameData>
          <objectType:parameter name="foo">bar</objectType:parameter>
        </objectType:cmdNameData>
      </resData>
    <trID>
      <clTRID>ABC-12345</clTRID>
      <svTRID>XYZ-54321</svTRID>
    </trID>
  </response>
</epp>

Domain `<info>` Request Frame

<?xml version="1.0" encoding="UTF-8"?>
<epp xmlns="urn:ietf:params:xml:ns:epp-1.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="urn:ietf:params:xml:ns:epp-1.0 epp-1.0.xsd">
  <command>
    <info>
      <domain:info xmlns:domain="urn:ietf:params:xml:ns:domain-1.0"
        xsi:schemaLocation="urn:ietf:params:xml:ns:domain-1.0 domain-1.0.xsd">
        <domain:name>example.uk.com</domain:name>
      </domain:info>
    </info>
    <clTRID>ABC-12345</clTRID>
  </command>
</epp>

Domain `<info>` Response Frame

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<epp xmlns="urn:ietf:params:xml:ns:epp-1.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="urn:ietf:params:xml:ns:epp-1.0 epp-1.0.xsd">
  <response>
    <result code="1000">
      <msg>Command completed successfully.</msg>
    </result>
    <resData>
      <domain:infData xmlns:domain="urn:ietf:params:xml:ns:domain-1.0"
        xsi:schemaLocation="urn:ietf:params:xml:ns:domain-1.0 domain-1.0.xsd">
        <domain:name>example.uk.com</domain:name>
        <domain:roid>CNIC-DO302520</domain:roid>
        <domain:status r="ok"/>
        <domain:registrant>C11480</domain:registrant>
        <domain:contact type="admin">C11480</domain:contact>
        <domain:contact type="tech">H12345</domain:contact>
        <domain:contact type="billing">C27228</domain:contact>
        <domain:clID>C11480</domain:clID>
        <domain:crDate>1995-01-01T00:00:00.0Z</domain:crDate>
        <domain:exDate>2037-01-01T23:59:59.0Z</domain:exDate>
        <domain:upDate>2006-09-06T15:43:19.0Z</domain:upDate>
        <domain:ns>
          <domain:hostObj>ns0.centralnic.net</domain:hostObj>
          <domain:hostObj>ns1.centralnic.net</domain:hostObj>
        </domain:ns>
        <domain:authInfo>
          <domain:pw>a893cd40c2bfa7d0</domain:pw>
        </domain:authInfo>
      </domain:infData>
    </resData>
    <trID>
      <clTRID>ABC-12345</clTRID>
      <svTRID>XYZ-54321</svTRID>
    </trID>
  </response>
</epp>

Other commands

<check> - availability
<info> - information
<create> - register
<renew>
<update>
<delete>
<transfer>

<transfer op="request">
<transfer op="query">
<transfer op="cancel">
<transfer op="approve">
<transfer op="reject">

<poll> - out-of-band message queue

<poll op="req">
<poll op="ack">

Idempotency

Running the same command twice has no effect
Rôle of clTRID

Object Types

Domains
Hosts
Contacts
DS records
Other types:

e-mail addresses
phone numbers
certificates

Domains

n contact assocations:
<domain:assoc type="registrant">H12345</domain:assoc>
n DNS servers:
<domain:ns>ns0.example.com</domain:ns>
n subordinate hosts:
<domain:host>ns1.example.com</domain:host>
n status codes:
<domain:status>clientTranserProhibited</domain:status>
authInfo code
metadata (ID, created, expires, updated, sponsor)

Hosts

n IP addresses:
<host:addr ip="v4">10.0.0.1</host:addr>
n status codes:
<host:status>serverDeleteProhibited</host:status>
authInfo code
metadata (ID, created, updated, sponsor)

Contacts

Name (<contact:name>)
Organisation (<contact:org>)
Postal Address

n Street address (<contact:street>)
City/Town (<contact:city>)
State/Province (<contact:sp>)
Country (<contact:cc>)

Voice (<contact:voice>)
Fax (<contact:fax>)
E-mail (<contact:email>)
n status codes:
<contact:status>serverDeleteProhibited</contact:status>
authInfo code
metadata (ID, created, updated, sponsor)

Status Codes

objects can have arbitrary number of codes
assigned by "server" and "client"
ok
linked
hold
Out-of-band transforms: pendingTransfer, pendingRenew, pendingDelete, pendingUpdate, pendingCreate
Restricted commands: deleteProhibited, transferProhibited, updateProhibited, renewProhibited
Grace periods: addPeriod, transferPeriod, renewPeriod

`authInfo`

managed by registrar
supplied to gaining registrar during transfer
means transfer is "auto-ack"

Extensions

new object types
extend object properties, TTL/web forwarding for domains
modify command behaviour
represented as a schema

EPP Clients

Not many off-the-shelf client implementations

EURid EPP Client (eppclient.it, PHP)

EPP Client Libraries

Plenty of libraries:

Universal Registry/Registrar Toolkit (epp-rtk.sf.net, C, C++, Java)
Universal Registry Client (urc.sf.net, Java)
Net::EPP::Client + Net::EPP::Frame (labs.centralnic.com, Perl)
Net_EPP_Client (labs.centralnic.com, PHP)
Net::DRI (CPAN, Perl)

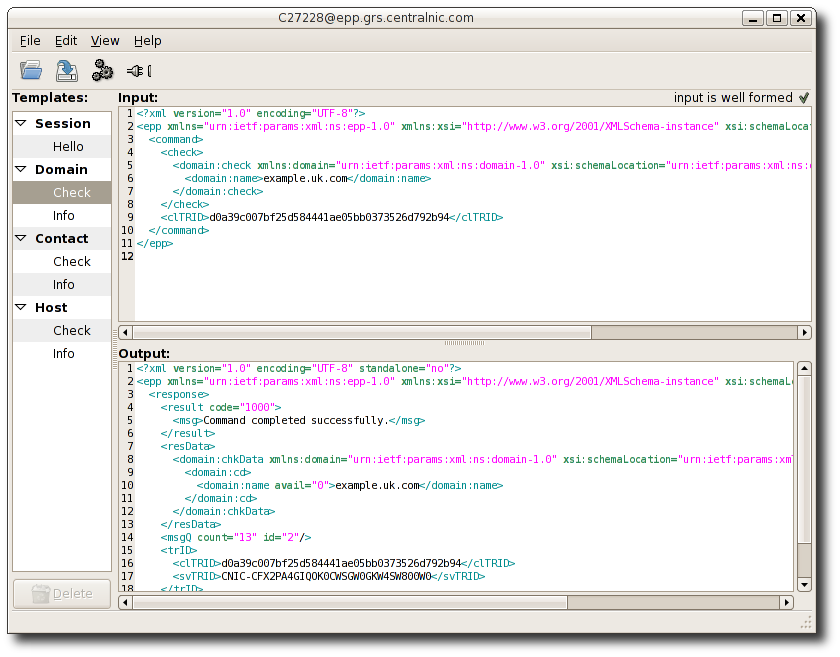

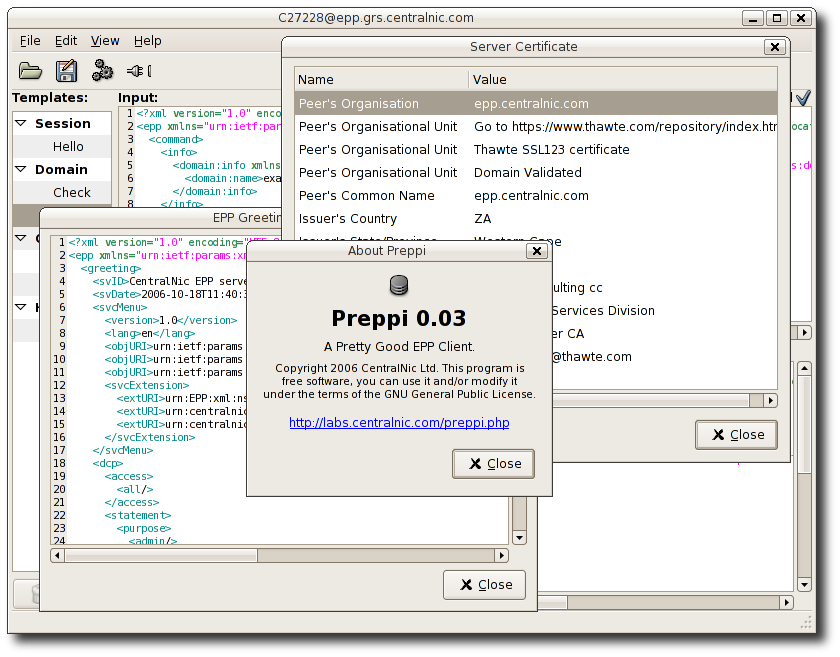

Preppi

Client scalability

stateful protocol
substantial overhead in SSL handshake and login
poor performance for web applications
use a proxy

Net::EPP::Proxy

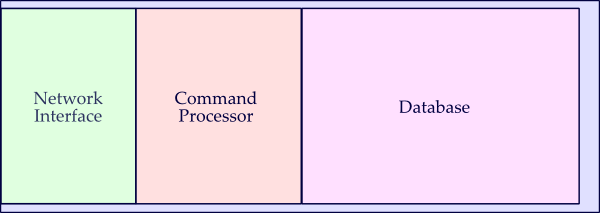

EPP Servers

accept connections
parse command frame
act on database
return result frame

mod_epp

open source (APL)
developed by nic.at with a little help from CentralNic
protocol module for Apache 2.x
security via mod_ssl
authentication via mod_auth
business logic handled by arbitrary backend
can use all the logging and performance features of Apache

CGI, PHP, whatever
custom Apache module

session management
web developers can operate domain registries!
aepps.sf.net
RPMs at labs.centralnic.com

mod_epp Configuration

Listen 700
LoadModule epp_module modules/mod_epp.so

<VirtualHost *:700>
  ServerName epp.centralnic.com

  EPPEngine On
  EPPCommandRoot /epp/command # <create> maps to /epp/command/create
  EPPSessionRoot /epp/session # <login> maps to /epp/session/login
  EPPErrorRoot   /epp/error
  EPPAuthURI     /epp/auth

  Alias /epp /var/lib/epp

  <Location "/epp/auth">
    AuthType      Digest
    AuthName     "EPP"
    AuthUserFile /var/lib/epp/etc/epp.passwd
    require      valid-user
  </Location>
</VirtualHost>

mod_epp Command Processors

mod_epp maps EPP commands to URIs
URIs get processed as if they were HTTP GET requests
get REMOTE_ADDR, REMOTE_PORT, REMOTE_USER
EPP command frame in frame CGI parameter
EPP clID in clID parameter

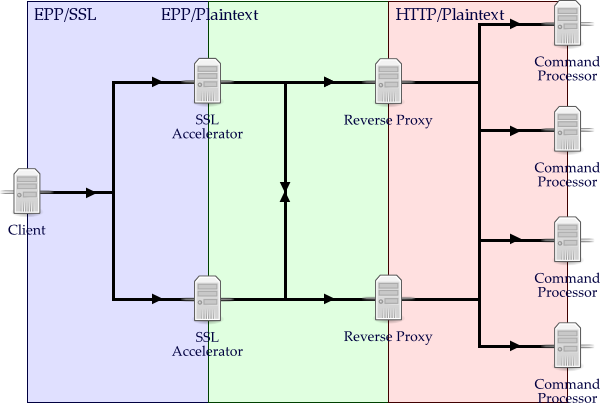

Scaling mod_epp implementations

Dedicated SSL appliance converts EPP+SSL to plaintext EPP
Reverse proxy accepts plaintext EPP connections and makes HTTP requests to a pool of command processors

Apache + mod_proxy:

<Location /epp>
  ProxyPass http://pool.epp.registry.tld/epp
</Location>

pool.epp.registry.tld is a round-robin host with short TTL
using Squid for reverse proxy might be better

Scaling mod_epp implementations

Nominet's solution

Use XML appliance (From Intel/Sarvega) to XSL EPP requests to Automaton requests
concerned about lack of proof of origin (XML signatures?)

Finishing Up

Slides at labs.centralnic.com/uknof5
software at labs.centralnic.com
mail: gavin@centralnic.com
jabber: gavin@juno.centralnic.net
skype: gavin.brown

Questions?

The Extensible Provisioning Protocol

Gavin Brown • 2006-10-26

The Extensible Provisioning Protocol

Gavin Brown, CentralNic Ltd

About CentralNic

History

What is EPP?

What is EPP?

What is EPP?

What is EPP?

Why should I care?

The guts of EPP

EPP Command Frame

EPP Response Frame

Domain <info> Request Frame

Domain <info> Response Frame

Other commands

Idempotency

Object Types

Domains

Hosts

Contacts

Status Codes

authInfo

Extensions

EPP Clients

EPP Client Libraries

Preppi

Preppi

Preppi

Client scalability

Net::EPP::Proxy

EPP Servers

mod_epp

mod_epp Configuration

mod_epp Command Processors

Scaling mod_epp implementations

Scaling mod_epp implementations

Nominet's solution

Finishing Up

Domain `<info>` Request Frame

Domain `<info>` Response Frame

`authInfo`
